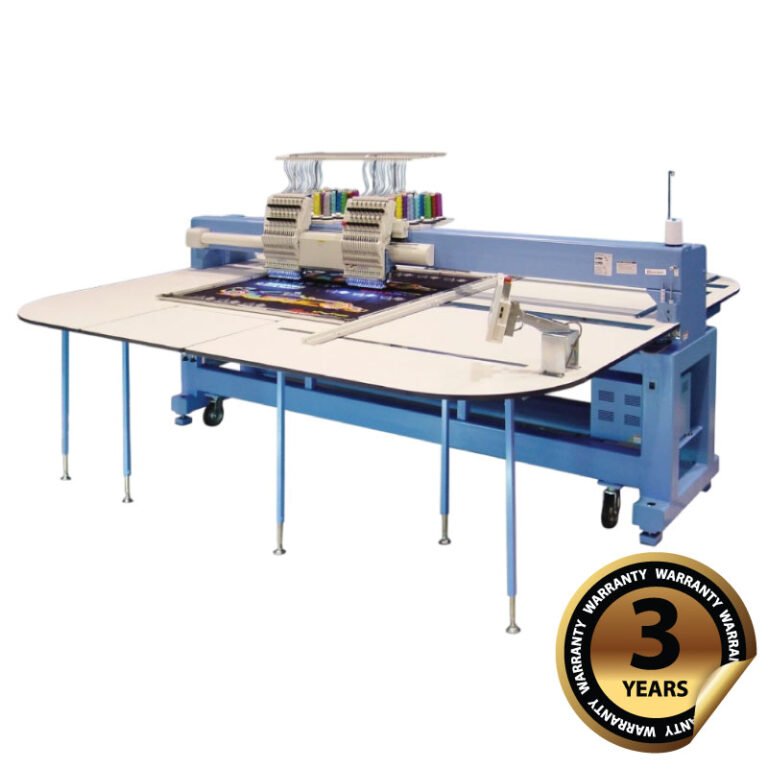

Happy Japan HFR-W Series (Wide Sewing Field) Embroidery Machine
Flat type model for wide areas that can embroider up to 1,200 x 1,200 mm
HFR-W is released for a large size embroidery work, such as large flags or national costumes. This model provides 600x1200mm embroidery field as standard and 1200x1200mm as Alternate model. Equipped with all heavy-duty drive system and a rigid strong body frame, HFR produce high quality embroidery arts even at large sizes.
All Happy Japan embroidery machines are made in Japan.
Key Features
Bobbin Winder
Option for HCR series
10.4 inch Display Monitor
Optional larger monitor
Upper Thread Holder
No more trouble with upper thread escaping from needles
Laser Position Marker
No more hitting frames
Safety Sensor Front & Rear
For avoidance to get injuries by accidentally touching working machines
Border Frame
For embroidery work on original fabrics
Cap Frame
For embroidery work on caps
One Point Frame (long type)
For one point embroidery work on shirts, bags, pants’ or shirts’ pockets etc.
Sequin & Zigzag Cording
For additional decorations on embroideries
Borer Device
Hollowing out garments for lace embroidery etc.
Spider Frame
Option for HCR series
Round Frame Preparation Base
Preparation base to reduce clumsiness for round frames

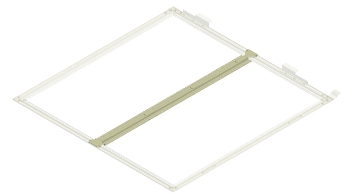

Border Frame Partition Plate
Border Frame for HFR-W series
Specification
| Number of Needles | 15 |
| Number of Head | 2 |
| Maximum Speed Tubular | 1,100 - 1,200rpm |
| Maximum Embroidery Field (X-Y) (Alternate model’s single head work) |
600 x 1,200mm (1,200 x 1,200mm) |
| Stitch Length | 0.1 – 12.7 mm |
| Memory | 40 millions stitches / 999 designs |
| Power Supply | Single Phase 200 - 240V |
General Features
| Automatic Thread Trimer | ✔ |
| Automatic Thread Break Detection | ✔ |
| Built-in Bobbin Thread Winder | Option |
| LCD Touch Screen Control Panel | 7 inch / Option: 10.4 inch |
| Laser Position Marker | Option |
| Direct PC Connection | USB/LAN |
| PC Communication Software | ✔ |
| 12 Fonts 6 Sizes Lettering | ✔ |
| Built-in 100 One-point Designs | ✔ |
| Embroidery Pattern Loading | USB Pen Drive |
