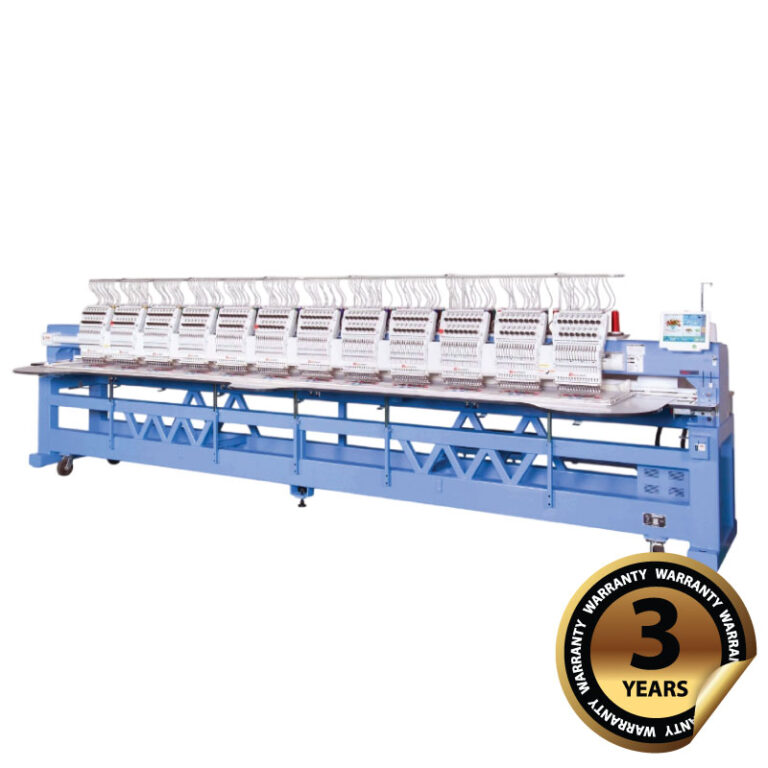

Happy Japan HCR3 Series Multi Head Embroidery Machine
Cylinder type industrial multi-head model that can embroider on various finished products
HCR3 is released with its range of 2 heads up to 12 heads and HCR3 X series, suitable for wider embroidery area (width:500mm), is available for 4, 6 and 8 heads.
Because of Its rigid and strong structure body frame eliminates machine noise and vibration.
On top of that, high power spec enables to embroider on thick and hard materials such as leathers.
All Happy Japan embroidery machines are made in Japan.
Key Features

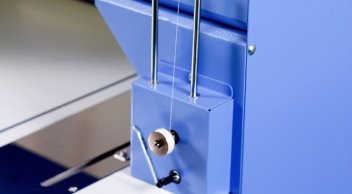

Bobbin Winder
Option for HCR series

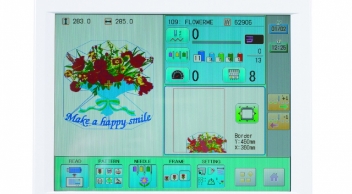

10.4 inch Display Monitor
Optional larger monitor

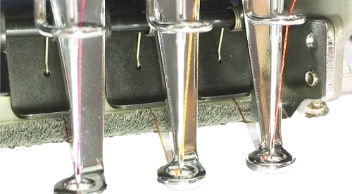

Upper Thread Holder
No more trouble with upper thread escaping from needles

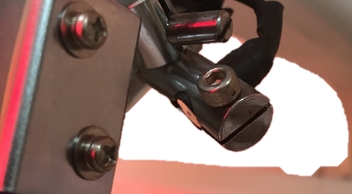

Laser Position Marker
No more hitting frames

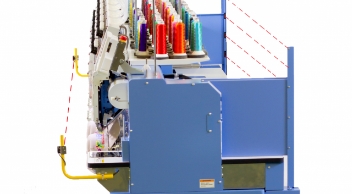

Safety Sensor Front & Rear
For avoidance to get injuries by accidentally touching working machines
Border Frame
For embroidery work on original fabrics

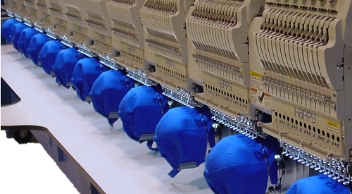

Cap Frame
For embroidery work on caps

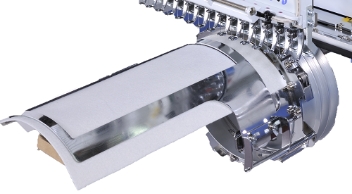

One Point Frame (long type)
For one point embroidery work on shirts, bags, pants’ or shirts’ pockets etc.
Sequin & Zigzag Cording
For additional decorations on embroideries
Borer Device
Hollowing out garments for lace embroidery etc.

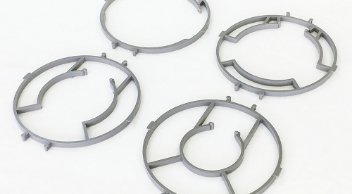

Spider Frame
Option for HCR series

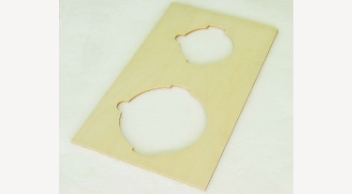

Round Frame Preparation Base
Preparation base to reduce clumsiness for round frames
Specification
| Number of Needles | 15 |
| Number of Head | 2 - 12 |
| Maximum Speed Tubular | 1,000 - 1,200rpm |
| Maximum Speed Cap | 850 - 1,100rpm |
| Maximum Embroidery (x-y) | 450 x 360 / 450 x 500mm |
| Stitch Length | 0.1 – 12.7 mm |
| Memory | 40 millions stitches / 999 designs |
| Power Supply | Single Phase 100-120V, 200-240V |
General Features
| Automatic Thread Trimer | ✔ |
| Automatic Thread Break Detection | ✔ |
| Built-in Bobbin Thread Winder | Option |
| LCD Touch Screen Control Panel | 7 inch / Option: 10.4 inch |
| Laser Position Marker | Option |
| Direct PC Connection | USB/LAN |
| PC Communication Software | ✔ |
| 12 Fonts 6 Sizes Lettering | ✔ |
| Built-in 100 One-point Designs | ✔ |
| Embroidery Pattern Loading | USB Pen Drive |
