GEM 13095-360-JG

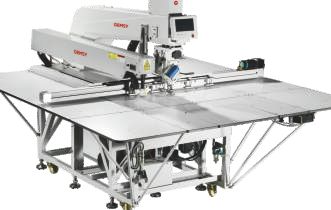

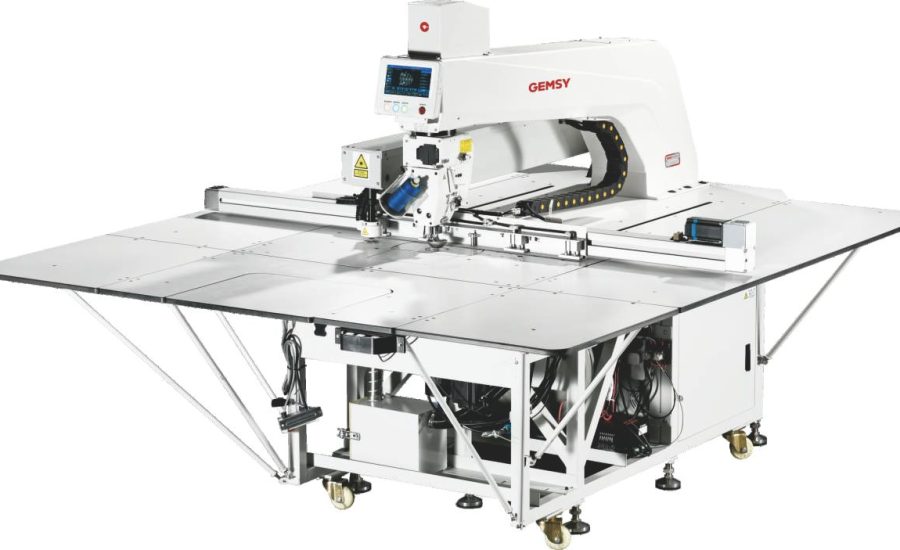

Machine Head Rotary Template Machine

1. The bottom of the machine head is cast in one piece: the rotation center is more stable and easily applicable to the 7 # machine needle.
2. Optional: Single feed screw or double feed screw feeding mechanism (high precision, smooth feeding).
3. Head rotation: 360 degree perfect stitching, solving reverse sewing and reducing idle time.
4. Extra large sewing space: 1300 x 900mm (actual range)
5. WIFI pattern transmission: eliminates the need for benchmarking, and allows sewing to be done simply by inserting the template, making it easy for
one person to remotely control 100 template machines.
6. Ultra high speed: sewing at 3500 revolutions per minute, air feed at 50000mm per minute, processing efficiency can be increased by 25%.
7. Complete machine accessories: large base, imported screw rod, imported guide rail, imported bearing, imported rotary shuttle, joint venture slip ring, fully servo control system, high-speed and more stable, longer service life.

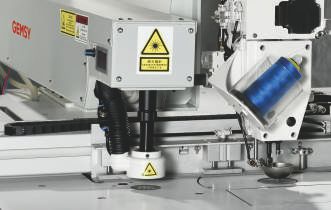

8. Laser cutting: optional 130W laser configuration, including water-cooled filtration device, large suction and exhaust device, using condensing laser, cutting white fabric without yellowing, no focus.
