FB 8500-13095
Description
- 360 Degree Free Rotary Sewing Head
- Imported Synchronous Belt Drive System For X/Y Direction, High Stitch Precious
- Multiple Optional Working Size, Operation Friendly;
- Sewing Head & Needle Bar Part Oil Free;
- RFID System, Automatic Identifiy 999 Patterns
Advantages

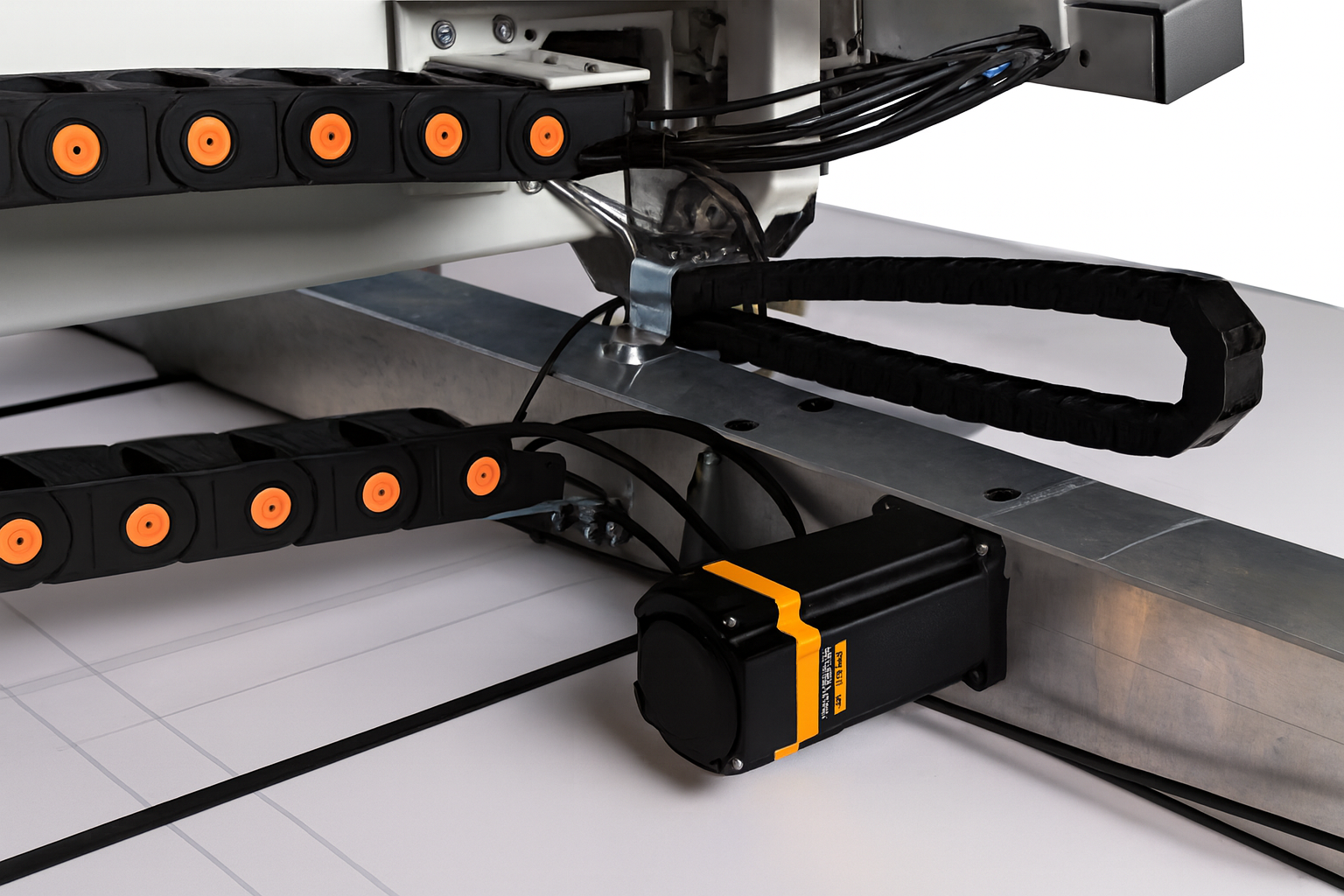

Dual Step Motor Feeding
Dual Synchronous Belt System

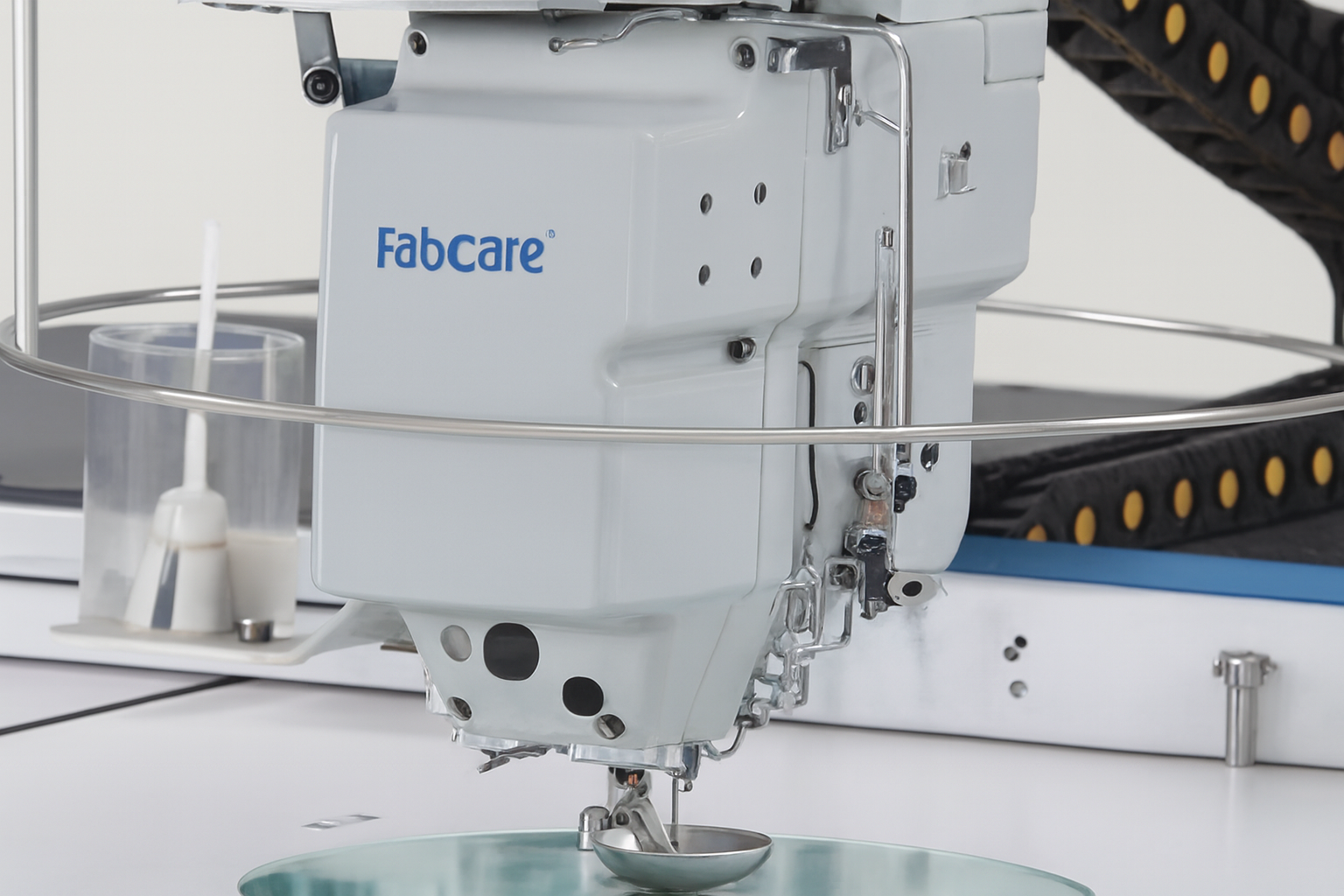

360 Degree Rotary Sewing Head, ensure the clock sewing direction, make sure a perfect sewing stitches.

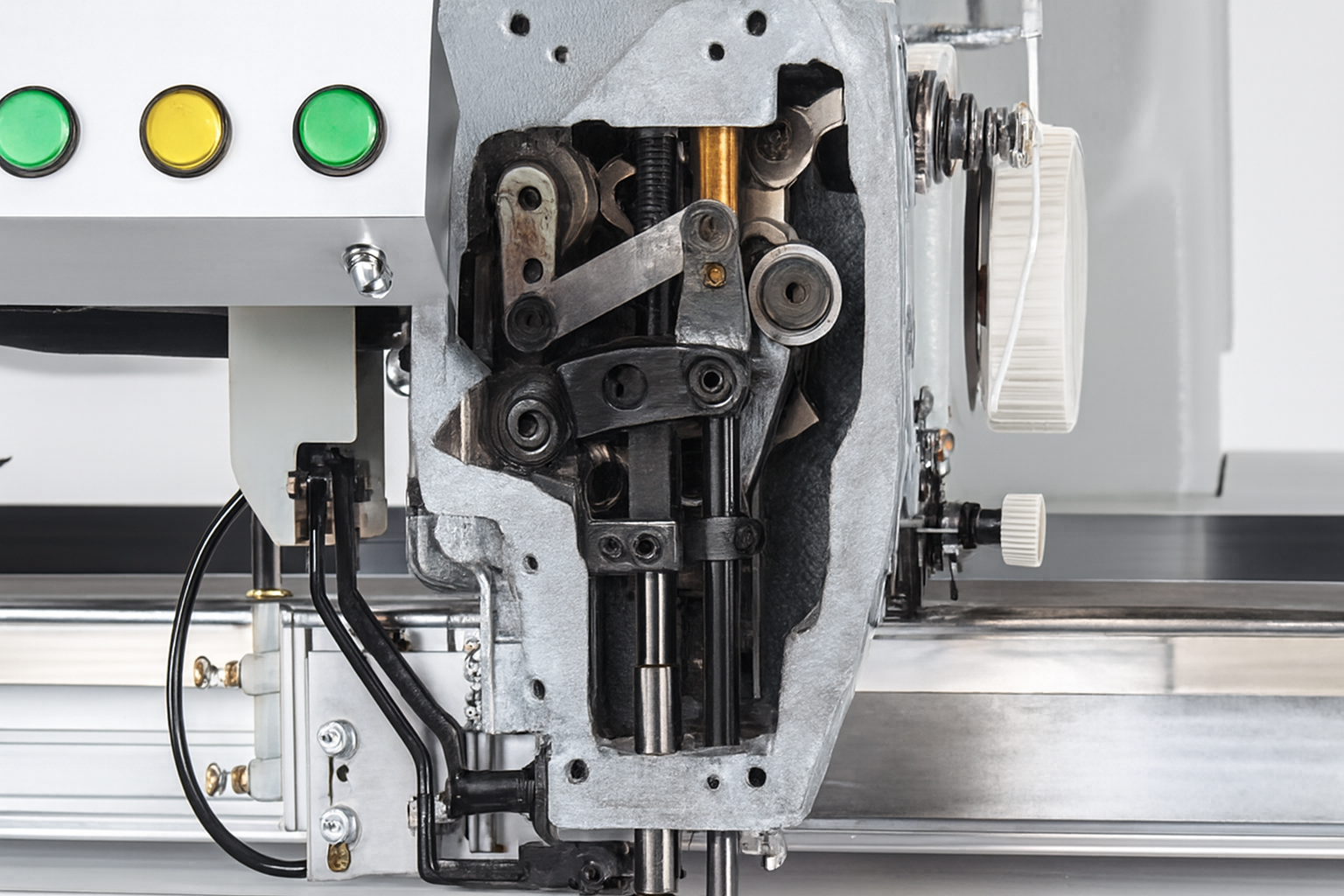

Head & Needle Bar Part Oil Free
Advanced Smart. RFID System
Auto identify 999 patterns
Specification
| Model No | FB 1341D |
| Feeding System | Alternating presser foot, feed dog and needle feeding |
| Max sewing speed | 2000 s.p.m. |
| Shutter diameter | θ 26mm |
| Diameter of cylinder | 80mm |
| Applied Needle | DPx17#18-#23 |
| Thread size | (13#) Maximum thread 9 strands nylon |
| Max stitch length | 9mm |
| Max Alternating presser foot | 6.5mm (Manually adjusted by knob) |
| Max presser foot lifting height | 16mm |
| Presser foot lifting function | Presser foot lifting by knee controller |
| Auto oil system | ✓ |
| Operation space | 255 x 103mm |
| FB 1341D-AF | |
| Alternating presser foot, feed dog and needle feeding | |
| 2000 s.p.m. | |
| θ 26mm | |
| 80mm | |
| DPx17#18-#23 | |
| (13#) Maximum thread 9 strands nylon | |
| 9mm | |
| 6.5mm (Manually adjusted by knob) | |
| 16mm | |
| Presser foot lifting by knee controller | |
| ✓ | |
| 255 x 103mm |
| Model No | FB 8500-13095 / 8500-13095-L |
| Working Area | 1300*950mm |
| X,Y Drive | Servo Motor Imported Synchronous Belt |
| Stitch Type | 301, Lockstitch |
| Stitch Length | 0.5 - 12.7mm |
| Max. Working Speed | 3200RPM (Stitch Length 3mm, Normal Thread |
| Needle Size | DB X1 10#(7-14#), DP X5 10#(7-14#) DP X35 19# (18-23#) |
| Hook Set | Double Times Rotary Hook Sets |
| Height of Middle Pressure Foot | 20mm |
| Height of External Pressure Foot | 20mm |
| No. of Storage Pattern in System | 999 |
| Max. Stitches for Single Pattern | 8000 |
| Program Input Mode | USB Drive |
| Pattern Format | DXF, AI, PLT, DST etc. |
| Main Servo Motor Power | 750W |
| Total Power | 2100W |
| Voltage | 220V |
| Air Pressure | 0.6Mpa |
| Packing Size | 2050*1380*1850mm (1300*950mm working size) |
