FB 1580E / FB 1580E4

The large operation space (335x125mm) facilitates the handing of large-area workpieces.
Internal direct drive servo motor and pneumatic controller components are convenient to install and maintain.

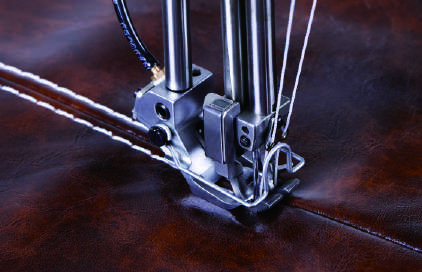

It is equipped with automatic back tacking, pneumatic presser foot, integrated LED light, free handle bobbin winder, up and down needle positioning, pneumatic halving outer foot, balance and compensate inner foot, pneumatic second clamp device and other practical functions.
Standard DL function, effectively reduce dense needles, broken thread, broken skin problem during climb over thick spots.
It can be set two different tension for clamp device by shortcut button and change quickly.
Standard metric needle gauge 8mm.

Topstitch process of the soft-furniture, car seats and automotive interior.

Specification

Model No	FB 1580E
Feeding System	Alternating presser foot, feed dog and needle feeding
Max sewing speed	2000 s.p.m.
Shutter diameter	θ 28mm
Applied Needle	DPx17#18-#23
Thread size	(13#) Maximum thread 9 strands nylon
Max stitch length	9mm
Max Alternating presser foot	6.5mm
Max presser foot lifting height	16mm
Auto trimming	✗
Auto back tacking	✓
Auto oil system	✓
Presser foot lifting height by air	✓
DL Function	✓
Operating space	335 x 125mm

FB 1580E$
Alternating presser foot, feed dog and needle feeding
2000 s.p.m.
θ 28mm
DPx17#18-#23
(13#) Maximum thread 9 strands nylon
9mm
6.5mm
16mm
✓
✓
✓
✓
✓
335 x 125mm

Model No	FB 2810E4
Feeding System	Presser foot and feed dog feeding
Max sewing speed	2200 s.p.m.
Shutter diameter	θ 25mm
Applied needle	Dp x 17#11-#18
Max Stitch length	12mm
Max Alternating presser foot	5.5mm (Manually adjusted by knob)
Max presser foot lifting height	11mm
Auto trimming	✓
Auto oil system	✓
Auto back tacking	✓
Integrated LED light	✓
Operating space	365 x 150mm
