FB 1510E4-VF
Description

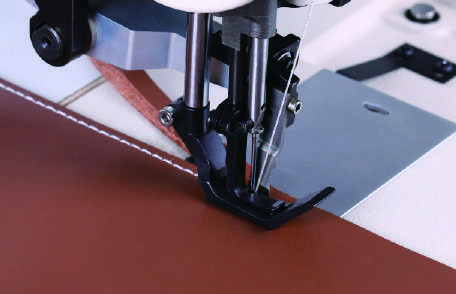

- The right cutting special structure design can trim the right side of the material during sewing.
- The side cutting has reliable performance, according to the sewing process, the function can be turned on or off by shortcut keys.
- It is equipped with auto trimming, auto back tacking, pneumatic presser foot lifting, auto oil supply, up and down needle positioning and other practical functions.
- Vertical knife trim the edge smoothly without bevel.
- Standard needle gauge set cutting width is 5mm.
Typical Field of Application
Edge trimming and special process for sofa, car interior or the same field products.
Advantages
The right cutting special structure
Setting and changing the amount of presser foot up and down simply
Precise thread trimmer
Needle gauge set
Specification
| Model No | FB 1510E4-VF |
| Feeding System | Alternating presser foot, feed dog and needle feeding |
| Max sewing speed | 2000 s.p.m. |
| Shutter diameter | θ 28mm |
| Applied needle | Dp x 17#18-#23 |
| Thread size | Maximum thread 9 strands nylon |
| Max stitch length | 9mm |
| Max Alternating presser foot | 6.5mm (Manually adjusted by knob) |
| Max presser foot lifting height | 16mm |
| Operating space | 255 x 103mm |
