FB-CQ Conveyor Type Joint Sewing Unit | Saikie Trading Dubai
Technical Features
Integrated CNC Synchronous Transport Car: Employs CNC synchronization technology to coordinate the transport conveyor car with the sewing machine head in real time, delivering uniform stitch pitch and straight seam lines without material dragging.
Automated Return System for Mass Production: Features an automated return mechanism that significantly boosts production efficiency over manual sewing setups, keeping output consistent during large-scale runs.
Pneumatic Mechanical Puller Integration: Equipped with a pneumatic mechanical tug/puller wheel that feeds thick and heavy fabrics smoothly through the needle without ply distortion or seam twisting.
Upper and Lower Differential Feeding: Integrates an adjustable upper and lower differential feed gear ratio, giving operators exact control over feed rates across lightweight sheers, stretch goods, and heavy woven textiles.
Industrial-Grade Branded Electronics: Powered by high-reliability control components, including Taiwan Shihlin frequency converters, Taiwan Yonghong PLC controllers, and premium Omron and Schneider electrical switches.
Multi-Process Modular Puller System: Supports interchangeable puller attachments (including Japanese-imported pullers, sold separately) to execute side hemming, bottom edge rolling, wrap-edge jointing, and rope piping insertion.
Low Learning Curve: Designed with intuitive single-touch pushbuttons and foot-switch sequencing, allowing entry-level workers to operate the machine with minimal training.
Primary Applications
Curtain & Drapery Jointing: Tension-free joining of multiple textile drops and wide drapery panels.
Side & Bottom Edge Hemming: Flat, uniform side hems and weighted bottom seams on home textiles.
Wrap-Edge & Piping Integration: Enclosing decorative cord, piping, and binding borders into seam lines.
Bolt Fabric & Wide Technical Textiles: Processing continuous rolls of upholstery, bedding, and architectural textiles.
Recommended Models & Installation Dimensions
| Recommended Model | Working Area (X × Y) | Machine Installation Dimensions (L × W × H) |
| RPCE-L-P+S-1-750×600-B-P6+IS2-VR2-AO,LH50,RH360-1P220 | 750 mm × 600 mm | 4143 mm × 2100 mm × 1650 mm |
| RPCE-L-P+S-1-900×600-B-P6+IS2-VR2-AO,LH50,RH360-1P220 | 900 mm × 600 mm | 4443 mm × 2100 mm × 1650 mm |
| RPCE-L-P+S-1-1200×800-B-P6+IS2-VR2-AO,LH50,RH360-1P220 | 1200 mm × 800 mm | 5043 mm × 2500 mm × 1650 mm |

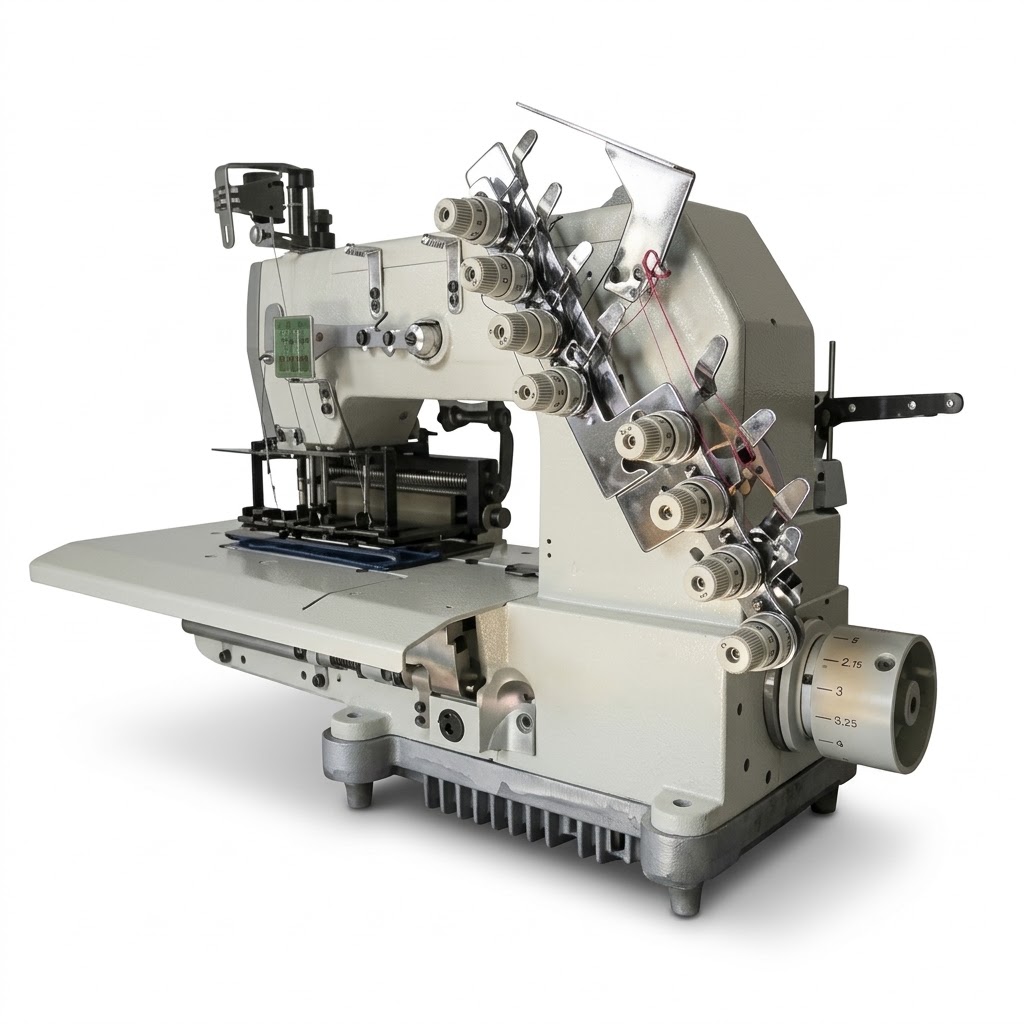

Sewing Machine List
FABCAREFB-VC008
FB3216TD

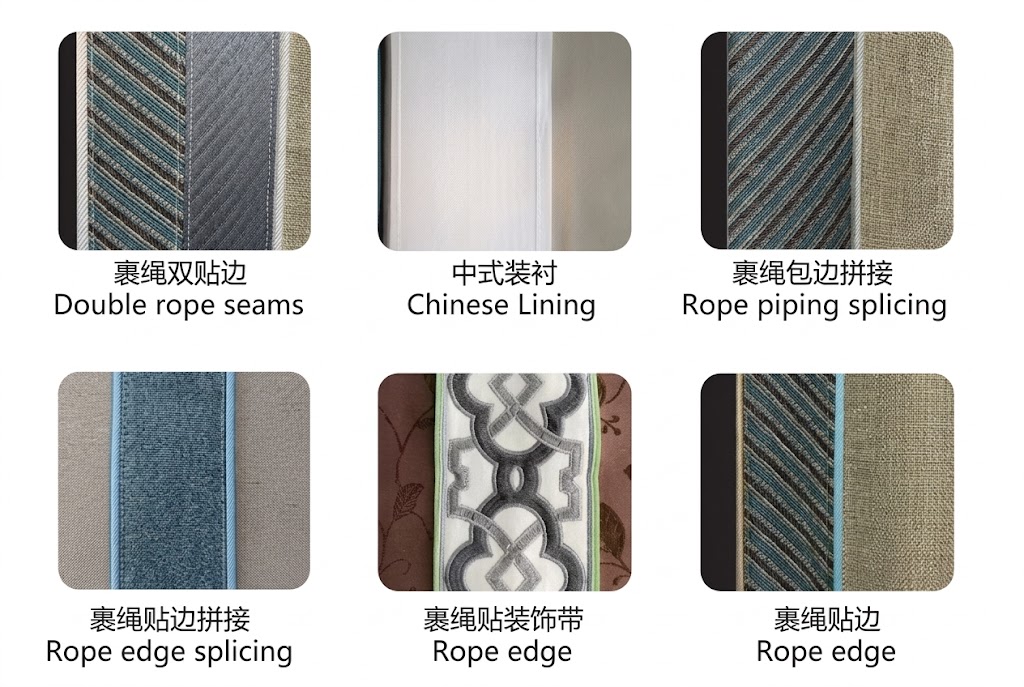

Function
Chinese Lining
Edge Binding
Rope piping
Rope edge
Rope edge Binding
Demonstration
Main Features
The outer and inner pressure Foot feeding ratio can independent adjusted to suit for stitch materials.
New designed buil-in bobbin winder, even For the double capacity bobbin. can be easily Winded.
Max. 9mm stitch length. New designed stitch length dial and lock system to ensure the stitches accuracy
OptionaI:Special designed pneumatic foot lifter and thread tension System, ensure the lifting height up to 16mm and the stitch tight enough For special purpose. ie. Football stitch.
powermax • 750w/1000w powerful seruo motor, ensure the strongest needle force of penetration. even for the safty belt stitch, the machine can ensure a beautiful stitches and stable performance: FB640D4-AK/P/S With Step Motor Oriue Feeding For Precious Stitch Length and Backtack.
The Unique designed Eedge Trimming mechanism For FB64503 model, adopt the strongest Cutter which can Cut up to 12mm height leather, with the 330• 150mm working clearance. give a perfect result OF edge trim.
The Unique designed cylinder bed top and bottom feed FB350D2-AK model, with max 16mm lift height Large working clearance For binding working.
| Parameter | Specification |
| Model Number | FB-CQ |
| Workstation Type | Conveyor Type Joint Sewing Unit |
| Rated Voltage | 220V Single Phase |
| Rated Power | 1.5 kW |
| Operating Air Pressure | 0.4 – 0.6 MPa |
| Dimensions (L × W × H) | 3000 mm × 2150 mm × 750 mm |
| Machine Weight | 100 KG |
| Core Controller | Taiwan Yonghong PLC |
| Inverter / Converter | Taiwan Shihlin Converter |
| Electrical Components | Schneider & Omron Industrial Hardware |
| Fabric Feeding System | Microcomputer-Controlled Conveyor + Pneumatic Mechanical Puller |
