FB-910-16 Curtain Double Side Rolling Sewing Unit | Saikie Dubai
Technical Features
Simultaneous Dual-Side Hemming: Configured with forward and reverse unilateral sewing machines working concurrently to hem both left and right curtain edges in a single pass, doubling line productivity.
Integrated Inline Thermal Ironing Device (Optional): Supports an optional integrated ironing assembly to hem and steam-press side folds simultaneously, eliminating separate manual pressing and lowering cycle times.
Non-Stop Long-Run Chainstitch Operation: Equipped with a double chainstitch overlock head that does not rely on standard bottom bobbin threads, allowing hours of continuous, uninterrupted production without thread changes.
Precision Hemming & Anti-Curl Architecture: Features an upgraded rolling and folding structure that secures exact 2 cm side edge dimensions while an active trimming mechanism cleanly shears curling burrs and regulates finished curtain width.
Anti-Slip Edge-to-Edge Suction Tracking: Equipped with a newly developed suction edge-to-edge tracking system that prevents fabric slippage, drift, or ply displacement during high-speed feed cycles.
Advanced Feed & Open-Width Expansion: Incorporates an open-width roll expansion mechanism and cloth-arranging auxiliary structure to feed multi-roll bolt fabrics smoothly and keep material flat before it reaches the needles.
Full PLC & Multi-Servo Synchronization: Synchronous servo drive system governed by a central PLC coordinates sewing heads, fabric feeding rollers, and collection belts in real time for straight seams across oversized panels.
Intelligent Automated Fault Detection: Integrated safety sensors detect fabric shortages, broken needles, and thread breaks instantly, triggering an auto-stop and audible alarm so a single operator can oversee multiple units safely.
Cloth Loosening & Trolley Placement: Includes a dedicated cloth-loosening mechanism that collects and routes finished rolled panels directly into transfer material carts for immediate downstream processing.
Primary Applications
High-Volume Curtain & Drapery Plants: Mass-production edge rolling, trimming, and finish-pressing on full curtain rolls and continuous bolt fabrics.
Wide-Span Window Treatments: Uniform 2 cm side hemming across residential shears, blackout fabrics, and commercial architectural curtains up to 1.6 meters wide.
Home Textile Manufacturing: Automated side edge finishing on bed coverings, decorative drapery panels, and tablecloths.
Recommended Models & Installation Dimensions
| Recommended Model | Working Area (X × Y) | Machine Installation Dimensions (L × W × H) |
| RPCE-L-P+S-1-750×600-B-P6+IS2-VR2-AO,LH50,RH360-1P220 | 750 mm × 600 mm | 4143 mm × 2100 mm × 1650 mm |
| RPCE-L-P+S-1-900×600-B-P6+IS2-VR2-AO,LH50,RH360-1P220 | 900 mm × 600 mm | 4443 mm × 2100 mm × 1650 mm |
| RPCE-L-P+S-1-1200×800-B-P6+IS2-VR2-AO,LH50,RH360-1P220 | 1200 mm × 800 mm | 5043 mm × 2500 mm × 1650 mm |
Sewing Machine List

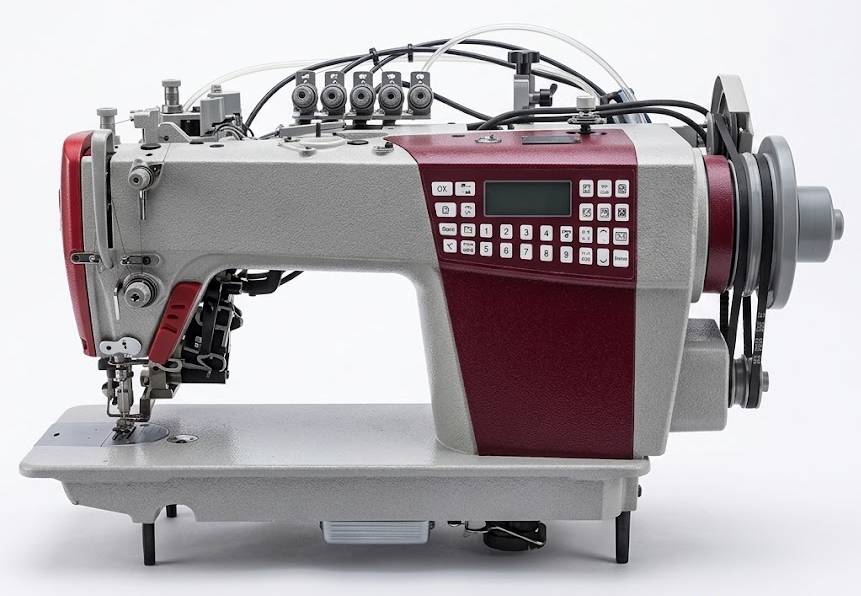

Lockstitch Sewing Head
FB3216TD
Function
Stitched zipper
Demonstration
Main Features
The outer and inner pressure Foot feeding ratio can independent adjusted to suit for stitch materials.
New designed buil-in bobbin winder, even For the double capacity bobbin. can be easily Winded.
Max. 9mm stitch length. New designed stitch length dial and lock system to ensure the stitches accuracy
OptionaI:Special designed pneumatic foot lifter and thread tension System, ensure the lifting height up to 16mm and the stitch tight enough For special purpose. ie. Football stitch.
powermax • 750w/1000w powerful seruo motor, ensure the strongest needle force of penetration. even for the safty belt stitch, the machine can ensure a beautiful stitches and stable performance: FB640D4-AK/P/S With Step Motor Oriue Feeding For Precious Stitch Length and Backtack.
The Unique designed Eedge Trimming mechanism For FB64503 model, adopt the strongest Cutter which can Cut up to 12mm height leather, with the 330• 150mm working clearance. give a perfect result OF edge trim.
The Unique designed cylinder bed top and bottom feed FB350D2-AK model, with max 16mm lift height Large working clearance For binding working.
| Parameter | Specification |
| Model Number | FB-910-16 |
| Workstation Type | Automatic Double Side Rolling Sewing Unit |
| Sewing Head Configuration | Forward & Reverse Double Chainstitch Overlock Heads |
| Standard Hem Dimension | 2 cm (20 mm) Side Edge / 2cm 卷边 |
| Maximum Fabric Width | 1.6 m (1600 mm) |
| Rated Power | 2.5 kW |
| Operating Air Pressure | 0.4 – 0.6 MPa |
| External Dimensions (L × W × H) | 4550 mm × 2300 mm × 2210 mm |
| Total Machine Weight | 710 KG |
| Control Architecture | High-Precision Servo Motors with Central PLC Control |
| Material Handling | Suction Edge Guide, Edge Trimmer & Cloth Loosening Device |
| Finishing Options | Optional In-line Ironing & Pressing Assembly |
