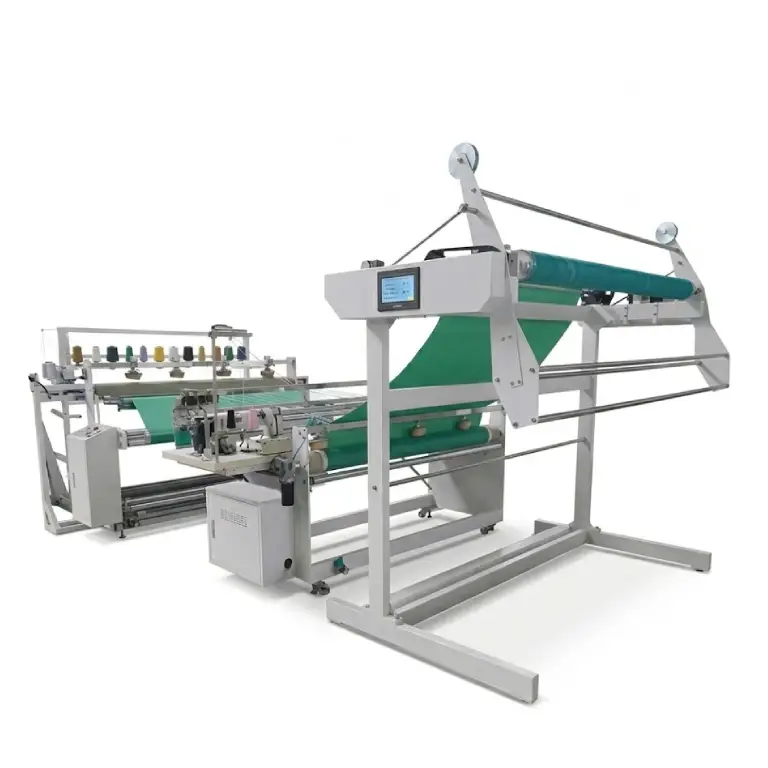

FB-900-XX Curtain Hemming & Ironing Sewing Unit | Saikie Dubai
Technical Features
Continuous Chainstitch Sewing Head (No Bottom Bobbin Changes): Incorporates an industrial chainstitch sewing head that eliminates the need to replace bottom bobbin thread, enabling continuous, long-run production shifts with efficiency several times higher than manual labor.
Automatic In-line Thermal Ironing After Crimping: Features an integrated post-crimping ironing module that automatically presses and sets the rolled hem immediately after folding and stitching, eliminating secondary finishing steps.
Integrated Multi-Roll Fabric Splicing Device: Equipped with a dedicated fabric splicing system to facilitate seamless, continuous sewing across multiple bolts and full curtain rolls without interrupting machine feeding.
Automatic Edging Alignment & Low-Tolerance Feeding: The cloth feeder integrates an automated edge alignment mechanism that guides raw edges with precision, ensuring finished product seam allowances remain within minimal error margins.
Dual-Drive Servo & Inverter Synchronous Speed Control: The primary sewing drive and high-precision main towing wheels are powered by independent servo motors, while auxiliary drive motors use intelligent frequency inverters to automatically synchronize belt travel with needle penetration.
Single-Operator Multi-Machine Management: Automated edge tracking, material folding, hemming, and press-finishing allow one operator to supervise multiple workstations simultaneously.
Automatic Loose-Cloth Arrangement for Material Carts: Built-in material discharge and loosening rollers gather the finished rolled drapery panels and deposit them neatly into material transport carts for immediate downstream processing.
Interchangeable Puller Tooling: Supports standardized folder and puller attachments:
Side edge specifications: 20 × 20 mm, 25 × 25 mm, and 30 × 30 mm (side edge dimension × volume).
Primary Applications
Curtain & Drapery Manufacturing: High-speed 2 cm side edge rolling, hemming, and crease-pressing on full fabric bolts and pre-cut drapes.
Wide-Format Home Textiles: Edge-finishing of oversized bed spreads, decorative throws, flat sheeting, and table linens.
Sheer & Heavy Drapery Processing: Uniform side folding and tension-free joining across translucent voiles, textured jacquards, and multi-layer blackout textiles.
Recommended Models & Installation Dimensions
| Recommended Model | Working Area (X × Y) | Machine Installation Dimensions (L × W × H) |
| RPCE-L-P+S-1-750×600-B-P6+IS2-VR2-AO,LH50,RH360-1P220 | 750 mm × 600 mm | 4143 mm × 2100 mm × 1650 mm |
| RPCE-L-P+S-1-900×600-B-P6+IS2-VR2-AO,LH50,RH360-1P220 | 900 mm × 600 mm | 4443 mm × 2100 mm × 1650 mm |
| RPCE-L-P+S-1-1200×800-B-P6+IS2-VR2-AO,LH50,RH360-1P220 | 1200 mm × 800 mm | 5043 mm × 2500 mm × 1650 mm |
Sewing Machine List
Chainstitch Sewing Head
FB3216TD
Function
Side Rolling

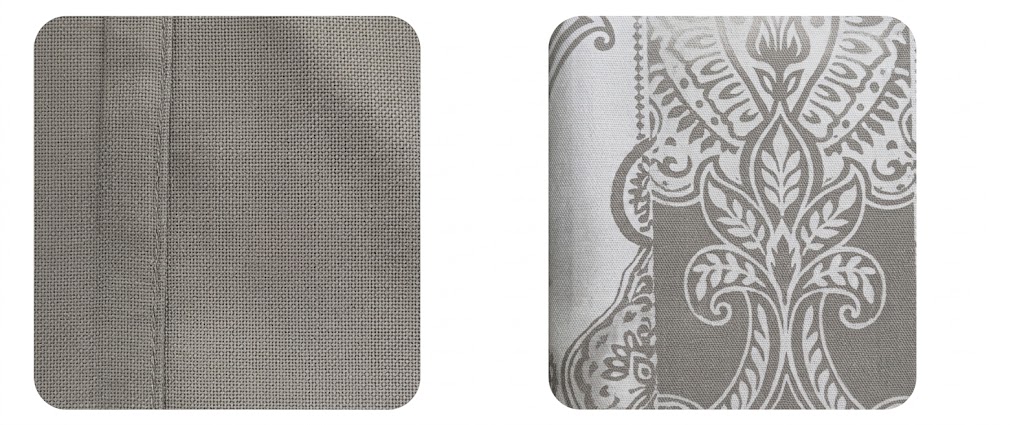

Demonstration
2cm卷边/side edge
2cm卷边/side edge
Main Features
The outer and inner pressure Foot feeding ratio can independent adjusted to suit for stitch materials.
New designed buil-in bobbin winder, even For the double capacity bobbin. can be easily Winded.
Max. 9mm stitch length. New designed stitch length dial and lock system to ensure the stitches accuracy
OptionaI:Special designed pneumatic foot lifter and thread tension System, ensure the lifting height up to 16mm and the stitch tight enough For special purpose. ie. Football stitch.
powermax • 750w/1000w powerful seruo motor, ensure the strongest needle force of penetration. even for the safty belt stitch, the machine can ensure a beautiful stitches and stable performance: FB640D4-AK/P/S With Step Motor Oriue Feeding For Precious Stitch Length and Backtack.
The Unique designed Eedge Trimming mechanism For FB64503 model, adopt the strongest Cutter which can Cut up to 12mm height leather, with the 330• 150mm working clearance. give a perfect result OF edge trim.
The Unique designed cylinder bed top and bottom feed FB350D2-AK model, with max 16mm lift height Large working clearance For binding working.
| Parameter | FB-900-16 | FB-900-20 | FB-900-30 |
| Maximum Fabric Width | 1.6 m (1600 mm) | 2.0 m (2000 mm) | 3.0 m (3000 mm) |
| Rated Power | 1.5 kW | 1.5 kW | 2.0 kW |
| Rating Air Pressure | 0.4 – 0.6 MPa | 0.4 – 0.6 MPa | 0.4 – 0.6 MPa |
| Dimensions (L × W × H) | 4550 × 2300 × 2210 mm | 4550 × 2800 × 2210 mm | 4550 × 3800 × 2210 mm |
| Machine Weight | 710 KG | 750 KG | 790 KG |
| Sewing Mechanism | Industrial Chainstitch Head (Bobbinless Operation) | Industrial Chainstitch Head (Bobbinless Operation) | Industrial Chainstitch Head (Bobbinless Operation) |
| Finishing System | Automated Post-Crimping Ironing Device | Automated Post-Crimping Ironing Device | Automated Post-Crimping Ironing Device |
| Puller Sizes | 20×20 mm, 25×25 mm, 30×30 mm | 20×20 mm, 25×25 mm, 30×30 mm | 20×20 mm, 25×25 mm, 30×30 mm |
