FB-810P Vertical Heat Forming Machine | Saikie Trading Dubai
Technical Features

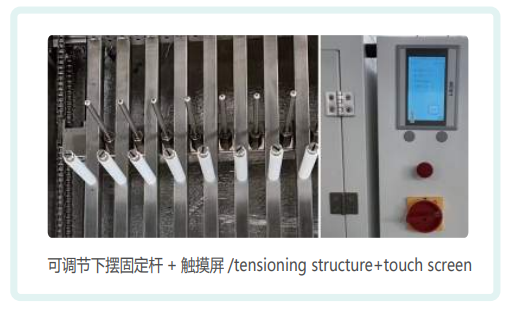

Up & Down Bidirectional Tensioning Mechanism: Features an engineered bottom-box tensioning assembly and vertical up-and-down pulling rods that lock drapery pleats into place, ensuring every fold receives equal mechanical tension during the forming cycle.

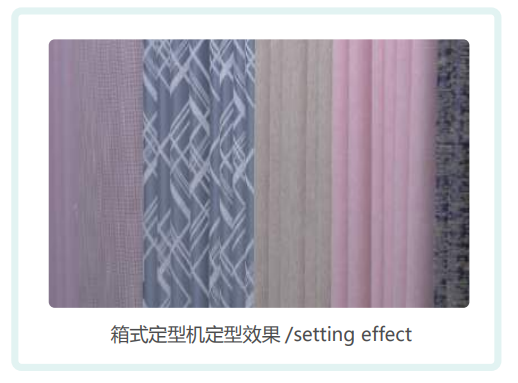

Hot Air & Steam Stereotyping System: Combines precision pressurized steam with forced hot air circulation to complete the memory stereotyping effect in short cycle times, fixing symmetrical, long-lasting fabric folds with a distinct curved aesthetic.
Thermal-Lock Integrated Cabinet Design: Built with a fully enclosed, insulated vertical cabinet architecture that maximizes workshop floor efficiency while preventing ambient heat loss during operation, keeping power consumption economical and operator environments comfortable.
Interactive Visual Touchscreen & Digital Timing Control: Outfitted with an external digital touchscreen interface for visual temperature regulation and exact shaping time adjustments, accommodating diverse natural and synthetic fabric types.
Ergonomic Foot-Pedal Control: Integrated floor-pedal pushbuttons provide three-dimensional, hands-free actuation, allowing operators to secure curtain hooks and lower tension bars smoothly before closing the cabinet doors.
Adjustable Multi-Fabric Positioning Rods: Includes adjustable lower fixed positioning bars that enable custom pleat depth calibration, producing consistent wave and fold memory across sheers, jacquards, and dense multi-layer blackout drapes.
Primary Applications
Memory Pleat Shaping & Stereotyping: Setting sharp, long-lasting memory curves on pinch pleats, ripple fold headings, and French pleats across full-drop curtains.
High-End Residential & Hospitality Drapery: Forming formal window treatments for hotels, luxury villas, and commercial auditoriums requiring uniform vertical hang and drape symmetry.
Wide-Span Architectural Fabric Treatments: Heat-setting oversized 3-meter architectural drops without hem skewing or uneven fabric stretch.
Multi-Textile Compatibility: Reliable fold retention on polyester weaves, blended linens, heavy jacquards, velvets, and multi-ply coated blackout textiles.
Recommended Models & Installation Dimensions
| Recommended Model | Working Area (X × Y) | Machine Installation Dimensions (L × W × H) |
| RPCE-L-P+S-1-750×600-B-P6+IS2-VR2-AO,LH50,RH360-1P220 | 750 mm × 600 mm | 4143 mm × 2100 mm × 1650 mm |
| RPCE-L-P+S-1-900×600-B-P6+IS2-VR2-AO,LH50,RH360-1P220 | 900 mm × 600 mm | 4443 mm × 2100 mm × 1650 mm |
| RPCE-L-P+S-1-1200×800-B-P6+IS2-VR2-AO,LH50,RH360-1P220 | 1200 mm × 800 mm | 5043 mm × 2500 mm × 1650 mm |
Sewing Head
JUKI (AMS-210EN)
FABCARE (FB-2210GH)
Pattern Sewer
Function
Pleats
Two fold
Demonstration
Main Features
The outer and inner pressure Foot feeding ratio can independent adjusted to suit for stitch materials.
New designed buil-in bobbin winder, even For the double capacity bobbin. can be easily Winded.
Max. 9mm stitch length. New designed stitch length dial and lock system to ensure the stitches accuracy
OptionaI:Special designed pneumatic foot lifter and thread tension System, ensure the lifting height up to 16mm and the stitch tight enough For special purpose. ie. Football stitch.
powermax • 750w/1000w powerful seruo motor, ensure the strongest needle force of penetration. even for the safty belt stitch, the machine can ensure a beautiful stitches and stable performance: FB640D4-AK/P/S With Step Motor Oriue Feeding For Precious Stitch Length and Backtack.
The Unique designed Eedge Trimming mechanism For FB64503 model, adopt the strongest Cutter which can Cut up to 12mm height leather, with the 330• 150mm working clearance. give a perfect result OF edge trim.
The Unique designed cylinder bed top and bottom feed FB350D2-AK model, with max 16mm lift height Large working clearance For binding working.
| Parameter | Specification |
| Model Number | FB-810P |
| Machine Type | Vertical Type Heat Forming Machine (Cabinet Stereotyping Unit) |
| Curtain Processing Capacity | 30 Hooks × 3000 mm (30 勾 × 3000 mm drop) |
| Rated Voltage | 380V Three-Phase |
| Rated Power | 15 kW |
| External Dimensions (L × W × H) | 2000 mm × 1200 mm × 3500 mm |
| Total Machine Weight | 550 KG |
| Heating Method | Forced Hot Air Circulation + High-Temperature Steam Stereotyping |
| Tensioning System | Up & Down Vertical Tension Mechanism with Adjustable Fixed Rods |
| Control Architecture | Visual Digital Touchscreen + Foot-Pedal Operation |
| Cabinet Construction | Thermal-Insulated Energy-Saving Vertical Enclosure (Zero Heat Loss) |
