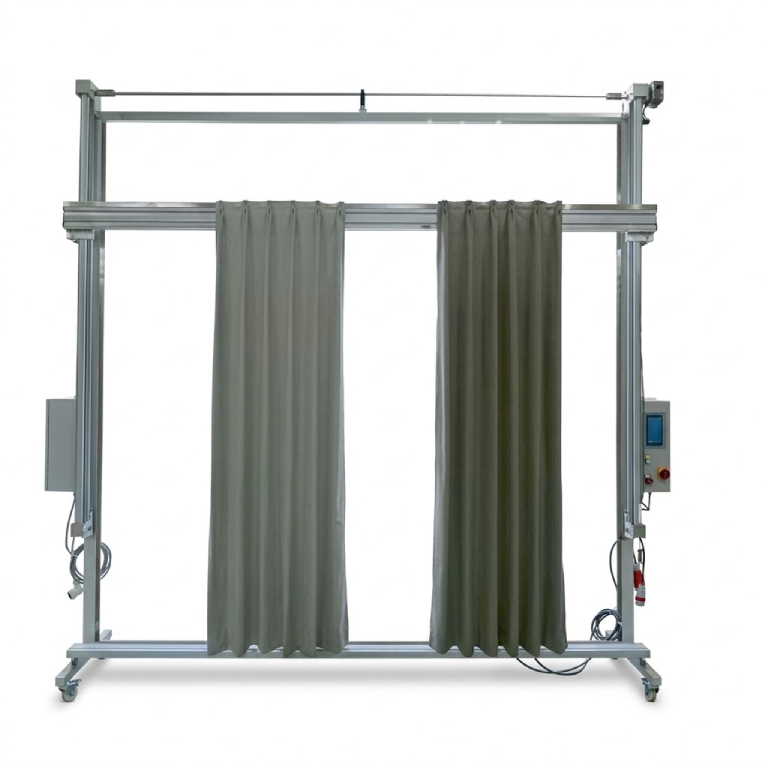

FB-680D Curtain Final QC Checking Machine | Saikie Dubai
Technical Features
Simultaneous Dual-Sided Inspection Architecture: Allows two operators to inspect drapery panels on both sides of the machine at the same time, maximizing factory floor utilization and doubling daily throughput.
High-Uniformity Direct Full Backlight Illumination: Equipped with a direct-type front full backlight system that provides bright, even light distribution to reveal needle holes, skipped stitches, weaving defects, and seam shading.
Automated Energy-Saving Light Controls: Built with an intelligent automatic lighting switch that turns lamps off when idle to conserve electricity and reduce eye strain for operators during long shifts.
Precision Numerical Positioning System: Uses an integrated CNC numerical control architecture with a visual touchscreen console to ensure smooth vertical travel and accurate height positioning during inspection.
Comprehensive Final Sewing & Dimension Verification: Evaluates finished curtain drop height, finished width, stitch straightness, and light-leak flaws, enabling operators to catch defects early and cut factory rework rates.
Universal Header Compatibility (Roman Rings & Japanese Hooks): Accommodates Roman eyelet rings and Japanese adjustable curtain hooks, with mounting provisions for specialized accessories and window slow-detection fixtures.
Industrial-Grade Branded Electronic Hardware: Outfitted with durable branded switches, drives, and structural components to ensure consistent multi-shift operation.
Extended 4.0-Meter Workshop Span: Built on a stable 4000 mm × 900 mm × 3440 mm frame capable of handling drapery lengths up to 3 meters.
Primary Applications
Final Drapery Quality Control & Inspection: Comprehensive pre-shipment checking for pinholes, stitch defects, puckered hems, and dimensional accuracy across finished window treatments.
Light-Leakage & Blackout Testing: High-intensity backlight inspection for multi-ply blackout curtains, coated linings, and hotel drapery panels.
Header & Pleat Alignment: Verifying hook positions, Roman ring spacing, and wave-fold symmetry across residential and commercial draperies.
Contract Textile Manufacturing: High-speed batch QC inspection for luxury villa draperies, hotel installations, and architectural partition curtains.
Recommended Models & Installation Dimensions
| Recommended Model | Working Area (X × Y) | Machine Installation Dimensions (L × W × H) |
| RPCE-L-P+S-1-750×600-B-P6+IS2-VR2-AO,LH50,RH360-1P220 | 750 mm × 600 mm | 4143 mm × 2100 mm × 1650 mm |
| RPCE-L-P+S-1-900×600-B-P6+IS2-VR2-AO,LH50,RH360-1P220 | 900 mm × 600 mm | 4443 mm × 2100 mm × 1650 mm |
| RPCE-L-P+S-1-1200×800-B-P6+IS2-VR2-AO,LH50,RH360-1P220 | 1200 mm × 800 mm | 5043 mm × 2500 mm × 1650 mm |
Sewing Head
JUKI (AMS-210EN)
FABCARE (FB-2210GH)
Pattern Sewer
Function
Pleats
Two fold
Demonstration
Main Features
The outer and inner pressure Foot feeding ratio can independent adjusted to suit for stitch materials.
New designed buil-in bobbin winder, even For the double capacity bobbin. can be easily Winded.
Max. 9mm stitch length. New designed stitch length dial and lock system to ensure the stitches accuracy
OptionaI:Special designed pneumatic foot lifter and thread tension System, ensure the lifting height up to 16mm and the stitch tight enough For special purpose. ie. Football stitch.
powermax • 750w/1000w powerful seruo motor, ensure the strongest needle force of penetration. even for the safty belt stitch, the machine can ensure a beautiful stitches and stable performance: FB640D4-AK/P/S With Step Motor Oriue Feeding For Precious Stitch Length and Backtack.
The Unique designed Eedge Trimming mechanism For FB64503 model, adopt the strongest Cutter which can Cut up to 12mm height leather, with the 330• 150mm working clearance. give a perfect result OF edge trim.
The Unique designed cylinder bed top and bottom feed FB350D2-AK model, with max 16mm lift height Large working clearance For binding working.
| Parameter | Specification |
| Model Number | FB-680D |
| Machine Type | Double-Sided Curtain Final QC Checking Machine (Customizable) |
| Detection Height | 3.0 m (3000 mm) |
| Rated Voltage | 220V Single Phase |
| Rated Power | 2.2 kW |
| External Dimensions (L × W × H) | 4000 mm × 900 mm × 3440 mm |
| Total Machine Weight | 300 KG |
| Control System | Numerical Control System (CNC Touchscreen Interface) |
| Inspection Illumination | Direct-Type Front Full Backlight with Automatic Shutoff |
| Workstation Format | Dual-Sided Inspection (Independent / Concurrent Two-Operator Use) |
| Hardware Compatibility | Roman Rings, Japanese Hooks & Slow-Detection Accessories |
