FB-230-4030
Technical Features
Integrated Multi-Step One-Pass Operation: Seamlessly pairs with a wide range of dedicated folding guides and technology folders, converting multi-step manual jointing operations into a continuous, one-step automated workflow that dramatically increases factory throughput.
Full Microcomputer PLC & Digital Architecture: Digital touchscreen PLC coordinates machine timing so operators with minimal training can consistently deliver technician-level seam quality and straightness.
Automatic Clip-on Cloth Tensioning Device: Outfitted with an automatic fabric clamping and pulling mechanism that dynamically modulates tensile pull according to fabric weight and texture, preventing stretching on sheer textiles and seam puckering on heavy drapes.
Japanese Pegasus EXT-3216 Overlock Head: Built to integrate the Japanese Pegasus EXT-3216 up-and-down differential five-thread overlock machine head, paired with a pneumatic mechanical puller to execute durable, high-speed single-piece edge joins and clean chainstitch reinforcements.
Multi-Drive Synchronous Servo Control: Central servo motor synchronization ensures the sewing head, long conveyor feed belt, fabric puller wheels, and retaining clips run in positive unison, eliminating ply displacement across extra-long fabric panels.
Humanized 3D Operational Control System: Ergonomic control arrangement featuring single-touch pushbuttons and integrated pedals makes continuous seaming smooth, predictable, and fatigue-free for long manufacturing shifts.
Customizable Extended Table Platform: Built on a modular 4.0-meter rolling conveyer platform (4000 × 1750 mm) that can be tailored to match specific plant dimensions and oversized drapery widths.
Primary Applications
Curtain & Drapery Joint Seaming: High-speed, tension-free joining of multiple fabric drops to construct full-width curtain panels.
Five-Thread Safety Stitch Seaming: Simultaneous edge overlocking and structural chainstitching on high-end domestic textiles, blackout fabrics, and textured jacquards.
Single-Piece Fabric Edge Processing: Specialized edge guiding, joining, and flat-seaming across delicate sheers, velvets, and synthetic technical textiles.
Recommended Models & Installation Dimensions
| Recommended Model | Working Area (X × Y) | Machine Installation Dimensions (L × W × H) |
| RPCE-L-P+S-1-750×600-B-P6+IS2-VR2-AO,LH50,RH360-1P220 | 750 mm × 600 mm | 4143 mm × 2100 mm × 1650 mm |
| RPCE-L-P+S-1-900×600-B-P6+IS2-VR2-AO,LH50,RH360-1P220 | 900 mm × 600 mm | 4443 mm × 2100 mm × 1650 mm |
| RPCE-L-P+S-1-1200×800-B-P6+IS2-VR2-AO,LH50,RH360-1P220 | 1200 mm × 800 mm | 5043 mm × 2500 mm × 1650 mm |
Sewing Machine List

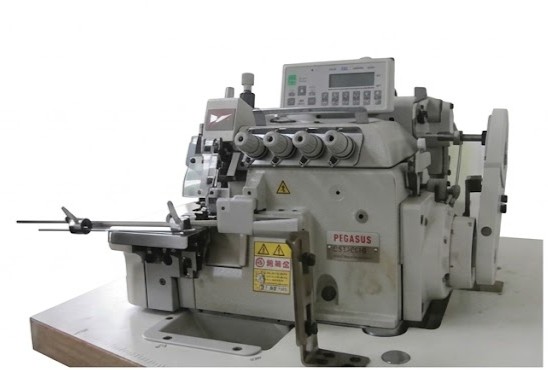

PEGASUS(日本飞马） EXT-3216
FB3216TD
Function
Japanese style lining
Wire rope
Joint Seam
Rope Binding
Specially piping Binding
Rope piping
Demonstration
Main Features
The outer and inner pressure Foot feeding ratio can independent adjusted to suit for stitch materials.
New designed buil-in bobbin winder, even For the double capacity bobbin. can be easily Winded.
Max. 9mm stitch length. New designed stitch length dial and lock system to ensure the stitches accuracy
OptionaI:Special designed pneumatic foot lifter and thread tension System, ensure the lifting height up to 16mm and the stitch tight enough For special purpose. ie. Football stitch.
powermax • 750w/1000w powerful seruo motor, ensure the strongest needle force of penetration. even for the safty belt stitch, the machine can ensure a beautiful stitches and stable performance: FB640D4-AK/P/S With Step Motor Oriue Feeding For Precious Stitch Length and Backtack.
The Unique designed Eedge Trimming mechanism For FB64503 model, adopt the strongest Cutter which can Cut up to 12mm height leather, with the 330• 150mm working clearance. give a perfect result OF edge trim.
The Unique designed cylinder bed top and bottom feed FB350D2-AK model, with max 16mm lift height Large working clearance For binding working.
| Parameter | Specification |
| Model Number | FB-230-4030 |
| Compatible Sewing Head | Japanese Pegasus EXT-3216 (Differential 5-Thread Overlock) |
| Rated Voltage | 220V Single Phase |
| Rated Power | 1.5 kW |
| Operating Air Pressure | 0.4 – 0.6 MPa |
| Dimensions (L × W × H) | 4000 mm × 1750 mm × 1550 mm |
| Total Weight | 450 KG |
| Control System | Microcomputer PLC with Digital Servo Synchronization |
| Tension Management | Automatic Clip-on Cloth Device with Dynamic Tension Control |
| Feed Mechanism | Synchronous Conveyor Belt with Pneumatic Mechanical Tug |
| Operational Interface | Humanized Three-Dimensional Control System |
