FB-200S Automatic Curtain Pleating Sewing Unit | Saikie Dubai
Technical Features
10-Inch Visual Touchscreen with Auto-Calculation: Operators only need to enter the initial panel length, target finished length, and required number of pleats into the 10-inch color touchscreen; the microcomputer automatically computes all spacing dimensions and pleat depths, setting the entire machine with one-touch confirmation.

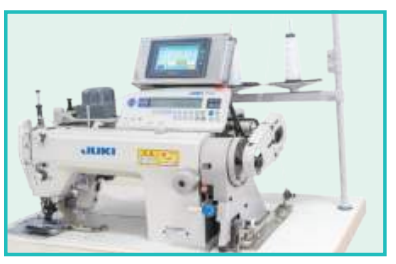

Integrated Japanese JUKI AMS-210EN CNC Sewing Head: Outfitted with an original Japanese JUKI AMS-210EN electronic pattern sewing machine head, delivering stable clamping force, consistent needle penetration through thick multi-layer pleats, and clean stitch tacking.
Advanced Japanese Pinching Mechanism: Features an upgraded mechanical pinching structure engineered specifically to fold and stitch specialized Japanese pinch pleats and tailored fold styles automatically.
Final 3-Pleat Aesthetic Calibration Reminder: Includes a built-in end-of-panel alert and aesthetic adjustment cycle for the final three pleats, compensating for fabric variances to ensure balanced spacing and pleat symmetry across the drapery border.
Multi-Style Pleat Pattern Editing: On-screen programmable stitch patterns allow operators to customize pleat geometry, executing standard 2-pleats, 3-pleats, or specialty architectural folds with technician-level consistency.
Industrial-Grade Branded Electronic Control: Powered by a Taiwan TECO servo drive system, Taiwan FATEK PLC controller, and heavy-duty Schneider and Omron electrical switches for reliable, multi-shift factory operation.
Multi-Machine Single-Operator Productivity: Full automation of folding, calculations, clamping, and stitching allows a single operator to manage multiple units simultaneously, multiplying daily finished curtain output.
Pleating Styles & Practical Functions
The FB-200S workstation supports automated folding, calculating, and tacking across popular residential and hospitality drapery headings:
T-Type 3-Pleats (T字三褶 / ‘T’ 3 Pleats): Deep, structured triple folds for formal draperies.
L-Type 3-Pleats (L字三褶 / ‘L’ 3 Pleats): Sharp, directional triple pleats for contemporary window treatments.
Two-Fold Pleats (二字两褶 / ‘=’ 2 Pleats): Clean, tailored double pinch pleats for lightweight to medium-weight fabrics.
Goblet Pleats (酒杯褶 / Goblet Pleats): Rounded, formal architectural goblet headers for high-end luxury interiors.
Specialty Craft Pleats (工艺褶 / Process Pleats): Custom-programmed fold sequences suited for heavy blackout, velvet, and jacquard fabrics.
Recommended Models & Installation Dimensions
| Recommended Model | Working Area (X × Y) | Machine Installation Dimensions (L × W × H) |
| RPCE-L-P+S-1-750×600-B-P6+IS2-VR2-AO,LH50,RH360-1P220 | 750 mm × 600 mm | 4143 mm × 2100 mm × 1650 mm |
| RPCE-L-P+S-1-900×600-B-P6+IS2-VR2-AO,LH50,RH360-1P220 | 900 mm × 600 mm | 4443 mm × 2100 mm × 1650 mm |
| RPCE-L-P+S-1-1200×800-B-P6+IS2-VR2-AO,LH50,RH360-1P220 | 1200 mm × 800 mm | 5043 mm × 2500 mm × 1650 mm |
Sewing Machine List
JUKI (AMS-210EN）
FB3216TD
Function
Pleats
Two fold
Three fold
Process pleat
Demonstration
Main Features
The outer and inner pressure Foot feeding ratio can independent adjusted to suit for stitch materials.
New designed buil-in bobbin winder, even For the double capacity bobbin. can be easily Winded.
Max. 9mm stitch length. New designed stitch length dial and lock system to ensure the stitches accuracy
OptionaI:Special designed pneumatic foot lifter and thread tension System, ensure the lifting height up to 16mm and the stitch tight enough For special purpose. ie. Football stitch.
powermax • 750w/1000w powerful seruo motor, ensure the strongest needle force of penetration. even for the safty belt stitch, the machine can ensure a beautiful stitches and stable performance: FB640D4-AK/P/S With Step Motor Oriue Feeding For Precious Stitch Length and Backtack.
The Unique designed Eedge Trimming mechanism For FB64503 model, adopt the strongest Cutter which can Cut up to 12mm height leather, with the 330• 150mm working clearance. give a perfect result OF edge trim.
The Unique designed cylinder bed top and bottom feed FB350D2-AK model, with max 16mm lift height Large working clearance For binding working.
| Parameter | Specification |
| Model Number | FB-200S |
| Workstation Type | Fully Automatic Curtain Pleating Sewing Unit |
| Integrated Sewing Head | Japanese JUKI AMS-210EN Automatic Pattern Machine Head |
| Rated Voltage | 220V Single Phase |
| Rated Power | 2.0 kW |
| Rated Current | 10A |
| Operating Air Pressure | 0.4 – 0.6 MPa |
| External Dimensions (L × W × H) | 1500 mm × 1600 mm × 1600 mm |
| Control System | 10-Inch Color Touchscreen + Taiwan FATEK PLC |
| Main Servo Drive | Taiwan TECO High-Precision Servo System |
| Electrical Components | Schneider & Omron Industrial Hardware |
| Supported Pleat Formats | Two Fold, Three Fold, Japanese Pinch, Goblet & Process Pleats |
