FB-200 Automatic Curtain Pleating Sewing Unit | Saikie Dubai
Technical Features
10-Inch Touchscreen Interface with Automatic Calculation: Features an intuitive 10-inch color touchscreen display where operators simply input the original fabric length, target finished curtain length, and desired number of pleats. The system automatically calculates spacing intervals and pleat depths, setting the entire machine with one-touch confirmation.
Integrated High-End Pattern Machine Heads: Optimally configured to pair with leading industrial pattern sewers:

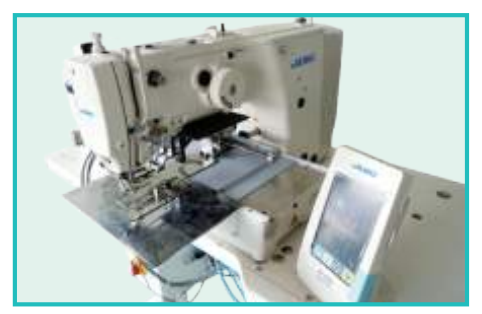

Standard Head: Japanese JUKI AMS-210EN automatic pattern machine head, recognized for stable needle penetration across thick fabrics and consistent stitch quality.
Alternative Head: FABCARE Pattern Sewer for heavy-duty, programmable drapery tacking.
Advanced CNC Pleat Technology: Employs precision numerical control pleating mechanisms suited for diverse fabric textures, from delicate sheer voiles to dense multi-ply blackout draperies.
Custom Programmable Pleat Formats: On-board pattern memory allows operators to edit, store, and execute custom stitch shapes, supporting two-fold pleats, triple-fold pleats, and specialized decorative tack patterns.
Last 3-Pleat Visual Reminder: Incorporates an end-of-panel alert system that calculates and balances the final three pleats to ensure consistent fold symmetry and spacing across the full drapery width.
High-Torque Branded Electronics: Engineered with a Taiwan Dong Yuan (TECO) servo motor drive, Taiwan Yonghong PLC, and industrial switches from Schneider and Omron for durable, round-the-clock factory performance.
Significant Productivity Boost: Fully automated folding, spacing, clamping, and sewing speeds up production to multiple times that of traditional manual pleating, reducing skilled labor costs while keeping stitches neat and uniform.
Pleating Styles & Practical Functions
The FB-200 unit supports automated folding, calculation, and stitching across popular residential and contract drapery headers:
T-Type 3-Pleats (T字三褶 / ‘T’ 3 Pleats): Symmetrical triple-fold headings for formal drapery installations.
L-Type 3-Pleats (L字三褶 / ‘L’ 3 Pleats): Modern directional triple pinch pleats.
Two-Fold Pleats (二字两褶 / ‘=’ 2 Pleats): Tailored double pinch pleats for lightweight to medium-weight draperies.
Goblet Pleats (酒杯褶 / Goblet Pleats): Rounded, formal architectural goblet headers for luxury interiors.
Special Pleats (工艺褶 / Special Pleats): Custom-programmed fold sequences suited for thick multi-layer textiles and specialized designer headings.
Recommended Models & Installation Dimensions
| Recommended Model | Working Area (X × Y) | Machine Installation Dimensions (L × W × H) |
| RPCE-L-P+S-1-750×600-B-P6+IS2-VR2-AO,LH50,RH360-1P220 | 750 mm × 600 mm | 4143 mm × 2100 mm × 1650 mm |
| RPCE-L-P+S-1-900×600-B-P6+IS2-VR2-AO,LH50,RH360-1P220 | 900 mm × 600 mm | 4443 mm × 2100 mm × 1650 mm |
| RPCE-L-P+S-1-1200×800-B-P6+IS2-VR2-AO,LH50,RH360-1P220 | 1200 mm × 800 mm | 5043 mm × 2500 mm × 1650 mm |
Sewing Head
JUKI (AMS-210EN)
FABCARE PATTERN SEWER
FB3216TD
Function
Pleats
Two fold
Three fold
Special pleats
Demonstration
Main Features
The outer and inner pressure Foot feeding ratio can independent adjusted to suit for stitch materials.
New designed buil-in bobbin winder, even For the double capacity bobbin. can be easily Winded.
Max. 9mm stitch length. New designed stitch length dial and lock system to ensure the stitches accuracy
OptionaI:Special designed pneumatic foot lifter and thread tension System, ensure the lifting height up to 16mm and the stitch tight enough For special purpose. ie. Football stitch.
powermax • 750w/1000w powerful seruo motor, ensure the strongest needle force of penetration. even for the safty belt stitch, the machine can ensure a beautiful stitches and stable performance: FB640D4-AK/P/S With Step Motor Oriue Feeding For Precious Stitch Length and Backtack.
The Unique designed Eedge Trimming mechanism For FB64503 model, adopt the strongest Cutter which can Cut up to 12mm height leather, with the 330• 150mm working clearance. give a perfect result OF edge trim.
The Unique designed cylinder bed top and bottom feed FB350D2-AK model, with max 16mm lift height Large working clearance For binding working.
| Parameter | Specification |
| Model Number | FB-200 |
| Workstation Type | Fully Automatic Curtain Pleating Sewing Unit |
| Compatible Sewing Heads | Japanese JUKI AMS-210EN / FABCARE Pattern Sewer |
| Rated Voltage | 220V Single Phase |
| Rated Power | 2.0 kW |
| Rated Current | 10A |
| Operating Air Pressure | 0.4 – 0.6 MPa |
| External Dimensions (L × W × H) | 1500 mm × 1300 mm × 1600 mm |
| Control System | 10-Inch Color Touchscreen + Taiwan Yonghong PLC |
| Servo System | Taiwan Dong Yuan (TECO) Servo Drive |
| Electrical Components | Schneider & Omron Industrial Hardware |
| Supported Functions | Pleats, Two Fold, Three Fold, Goblet & Special Pleats |
