Technical Features
Single-Operator Fabric Identification System: Designed for smooth, straightforward operation, the integrated material identification sensor allows a single worker to manage cutting cycles independently without complex manual setup.
True Right-Angle Shearing Principle: Operates on an engineered right-angle cutting principle that allows even entry-level operators to shear weft-skewed, twisted, or stretchy fabrics cleanly without skilled tailoring experience.
Vertical Hanging Frame (Anti-Deformation): Employs an upright suspension cutting structure that reduces floor space requirements while preventing fabric stretching, pulling distortion, and uneven hem drop during the cut.
Dynamic Suction Clamping Device: Equipped with an active pneumatic dynamic suction device that holds both ultra-thin sheers and thick multi-ply fabrics firmly in place, eliminating edge twisting and panel displacement.
Infrared Pattern Sighting Alignment: Integrated with an optical infrared aiming projection device, making it simple for operators to align pattern repeats, damask motifs, and floral jacquards accurately before executing the cut.
Multi-Width Fabric Efficiency (1.4 m & 2.8 m Support): Allows operators to select matching cutting parameters for standard 1.4-meter fabric widths and seamless 2.8-meter architectural draperies to maximize production efficiency.
3rd-Generation High-Torque Cutting Head: Powered by a third-generation cutter unit that delivers elevated drive torque paired with a universal cloth-cutting blade, slicing cleanly through varied textile densities while keeping replacement blade costs low.
Roller-Type Dual Cloth Rack: Outfitted with an external roller-type material rack that holds and feeds both primary face fabrics and secondary lining materials cleanly.
Primary Applications
Curtain Height Trimming & Sizing: Automated vertical sizing and square-cut shearing for residential, commercial, and hospitality drapery panels up to 3.7 meters high.
Patterned Drapery Alignment: Infrared-guided cutting for jacquard fabrics, embroidered voiles, and printed panels requiring pattern matching.
Dual-Fabric Face & Lining Shearing: Simultaneously unrolling, supporting, and sizing decorative curtain textiles alongside blackout or thermal linings.
Contract Textile Manufacturing: High-speed sizing of hotel draperies, villa window treatments, and wide-span architectural screens.
Recommended Models & Installation Dimensions
| Recommended Model | Working Area (X × Y) | Machine Installation Dimensions (L × W × H) |
| RPCE-L-P+S-1-750×600-B-P6+IS2-VR2-AO,LH50,RH360-1P220 | 750 mm × 600 mm | 4143 mm × 2100 mm × 1650 mm |
| RPCE-L-P+S-1-900×600-B-P6+IS2-VR2-AO,LH50,RH360-1P220 | 900 mm × 600 mm | 4443 mm × 2100 mm × 1650 mm |
| RPCE-L-P+S-1-1200×800-B-P6+IS2-VR2-AO,LH50,RH360-1P220 | 1200 mm × 800 mm | 5043 mm × 2500 mm × 1650 mm |

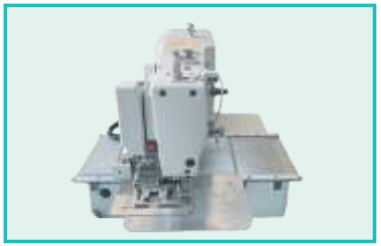

Sewing Head

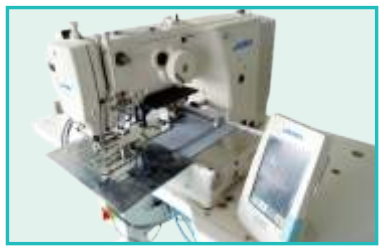

JUKI (AMS-210EN)
FABCARE (FB-2210GH)
Pattern Sewer
Function
Pleats
Two fold
Demonstration
Main Features
The outer and inner pressure Foot feeding ratio can independent adjusted to suit for stitch materials.
New designed buil-in bobbin winder, even For the double capacity bobbin. can be easily Winded.
Max. 9mm stitch length. New designed stitch length dial and lock system to ensure the stitches accuracy
OptionaI:Special designed pneumatic foot lifter and thread tension System, ensure the lifting height up to 16mm and the stitch tight enough For special purpose. ie. Football stitch.
powermax • 750w/1000w powerful seruo motor, ensure the strongest needle force of penetration. even for the safty belt stitch, the machine can ensure a beautiful stitches and stable performance: FB640D4-AK/P/S With Step Motor Oriue Feeding For Precious Stitch Length and Backtack.
The Unique designed Eedge Trimming mechanism For FB64503 model, adopt the strongest Cutter which can Cut up to 12mm height leather, with the 330• 150mm working clearance. give a perfect result OF edge trim.
The Unique designed cylinder bed top and bottom feed FB350D2-AK model, with max 16mm lift height Large working clearance For binding working.
| Parameter | Specification |
| Model Number |
FB-170 |
| Machine Classification |
Vertical Cutting Machine (Customizable) |
| Rated Voltage |
220V Single Phase |
| Rated Power |
1.0 kW |
| External Dimensions (L × W × H) |
2500 mm × 800 mm × 3700 mm |
| Alignment System |
Optical Infrared Pattern Aiming Device |
| Clamping Mechanism |
Dynamic Suction Device (Thin & Thick Fabric Support) |
| Cutting Assembly |
3rd-Gen High-Torque Mechanism with Universal Cloth Blade |
| Fabric Handling |
Multi-Tier Roller Type Cloth Rack (Main & Minor Fabric Support) |
| Supported Widths |
Optimized for 1.4 m and 2.8 m Fabric Configurations |
