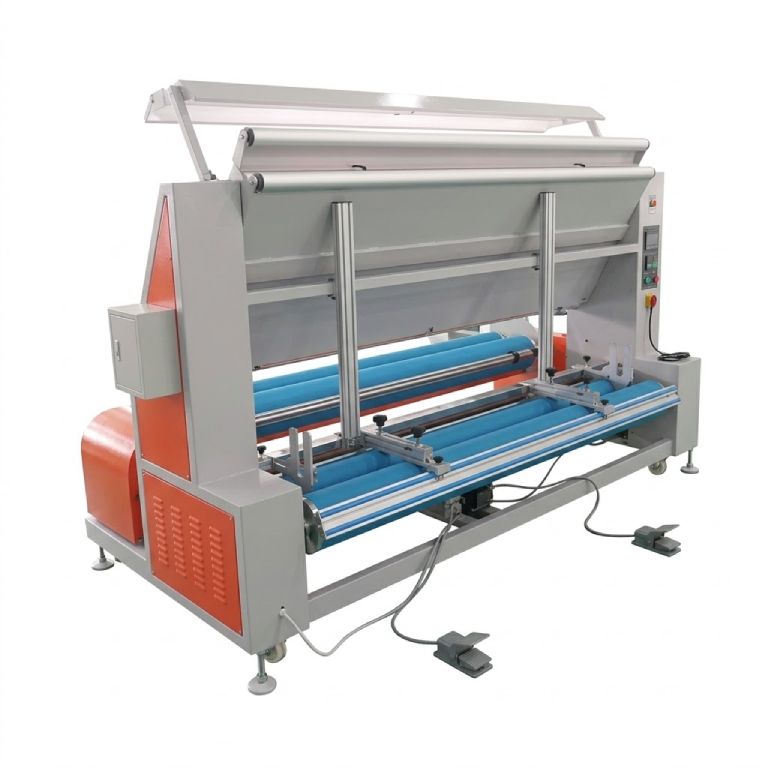

FB-124G-ED Fabric Inspecting Machine | Saikie Trading Dubai
Technical Features
European Engineering & Aesthetic Craftsmanship: Integrates European industrial design principles with robust mechanical execution and branded electrical components for dependable factory performance.
Precision Infrared Electronic Edge Control: Outfitted with an internal infrared electronic automatic edge-guiding system that keeps fabric margins aligned during winding, maintaining an edging error tolerance within ≤ 0.5 mm.
Electronic Stepless Speed Regulation (0–50 m/min): Provides smooth variable speed adjustment from 0 to 50 meters per minute, allowing operators to freely calibrate roll tension or run completely tension-free based on textile elasticity.
Bidirectional Forward & Backward Rolling Inspection: Supports two-way motorized rolling, enabling operators to inspect fabrics forward and in reverse to confirm defect locations without unmounting rolls.
Stainless Steel Flattening Roller: Built with a specialized stainless steel cloth-expanding roller that smooths out wrinkles, curled edges, and uneven folds before winding, protecting delicate textiles from manual pulling damage.
Elastic Fabric Loosening Function: Features a dedicated cloth-loosening mechanism designed to prevent stretching, distortion, or elongation on high-stretch knits and elastic fabrics.
High-Transmission Dual Internal & External Lighting: Built with imported optical diffusion panels paired with high-intensity internal and external lamps to provide clear visibility across sheer, printed, and dense fabrics.
High-Precision Electronic Yardage Counter: Incorporates a high-precision digital length gauge that measures and records roll length and piece quantity in real time.
Front Workstation & Mobile Caster Mobility: Outfitted with an ergonomic front prep table for tube loading and wrapping, convenient foot-pedal reset switches, and heavy-duty swivel casters for effortless shop-floor repositioning.
Primary Applications
Raw Material Intake Quality Assurance: Inspecting incoming fabric rolls for weave blemishes, printing defects, color shading, and yarn snags prior to spreading and cutting.
Curtain & Drapery Fabric Preparation: Edge-aligning and unrolling sheer voiles, jacquards, and coated blackout curtain bolts with zero edge curl.
Elastic & Knit Textile Winding: Tension-free inspection and inspection-rolling of stretch fabrics, swimwear lycra, and delicate knits without fiber distortion.
Apparel & Home Furnishing Plants: High-speed batch yardage auditing and packaging preparation for bed linens, upholstery, and commercial garments.
Recommended Models & Installation Dimensions
| Recommended Model | Working Area (X × Y) | Machine Installation Dimensions (L × W × H) |
| RPCE-L-P+S-1-750×600-B-P6+IS2-VR2-AO,LH50,RH360-1P220 | 750 mm × 600 mm | 4143 mm × 2100 mm × 1650 mm |
| RPCE-L-P+S-1-900×600-B-P6+IS2-VR2-AO,LH50,RH360-1P220 | 900 mm × 600 mm | 4443 mm × 2100 mm × 1650 mm |
| RPCE-L-P+S-1-1200×800-B-P6+IS2-VR2-AO,LH50,RH360-1P220 | 1200 mm × 800 mm | 5043 mm × 2500 mm × 1650 mm |
Sewing Head
JUKI (AMS-210EN)
FABCARE (FB-2210GH)
Pattern Sewer
Function
Pleats
Two fold
Demonstration
Main Features
The outer and inner pressure Foot feeding ratio can independent adjusted to suit for stitch materials.
New designed buil-in bobbin winder, even For the double capacity bobbin. can be easily Winded.
Max. 9mm stitch length. New designed stitch length dial and lock system to ensure the stitches accuracy
OptionaI:Special designed pneumatic foot lifter and thread tension System, ensure the lifting height up to 16mm and the stitch tight enough For special purpose. ie. Football stitch.
powermax • 750w/1000w powerful seruo motor, ensure the strongest needle force of penetration. even for the safty belt stitch, the machine can ensure a beautiful stitches and stable performance: FB640D4-AK/P/S With Step Motor Oriue Feeding For Precious Stitch Length and Backtack.
The Unique designed Eedge Trimming mechanism For FB64503 model, adopt the strongest Cutter which can Cut up to 12mm height leather, with the 330• 150mm working clearance. give a perfect result OF edge trim.
The Unique designed cylinder bed top and bottom feed FB350D2-AK model, with max 16mm lift height Large working clearance For binding working.
| Parameter | FB-124G-ED (1800mm) | FB-124G-ED (2400mm) |
| Fabric Width | 1800 mm | 2400 mm |
| Rated Voltage | 220V Single Phase | 220V Single Phase |
| Rated Power | 2.0 kW | 2.0 kW |
| Max Cylinder / Roll Diameter | 400 mm | 400 mm |
| Operating Speed | 0 – 50 m/min (Stepless Electronic Regulation) | 0 – 50 m/min (Stepless Electronic Regulation) |
| Edging Alignment Error | ≤ 0.5 mm | ≤ 0.5 mm |
| External Dimensions (L × W × H) | 2450 mm × 1300 mm × 1650 mm | 3050 mm × 1300 mm × 1650 mm |
| Total Machine Weight | 265 KG | 310 KG |
| Edge Guiding System | Sophisticated Internal Infrared Electronic Edge Control | Sophisticated Internal Infrared Electronic Edge Control |
| Inspection Illumination | Imported Transparent Material with Dual Internal & External Lighting | Imported Transparent Material with Dual Internal & External Lighting |
| Material Handling | Stainless Steel Flattening Roller + Elastic Cloth Loosening Device | Stainless Steel Flattening Roller + Elastic Cloth Loosening Device |
